• (2) lower storage compartments in rear-inc: tools & jack

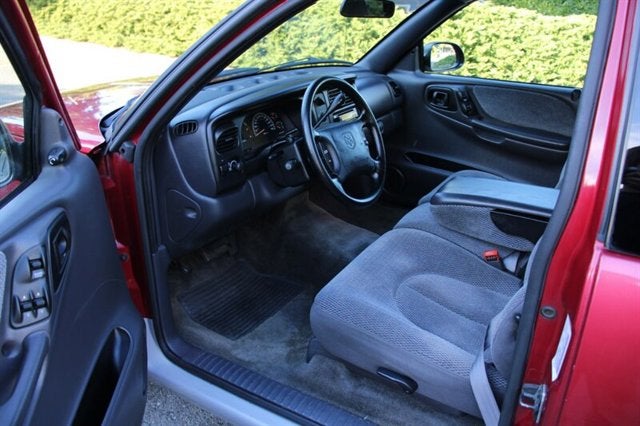

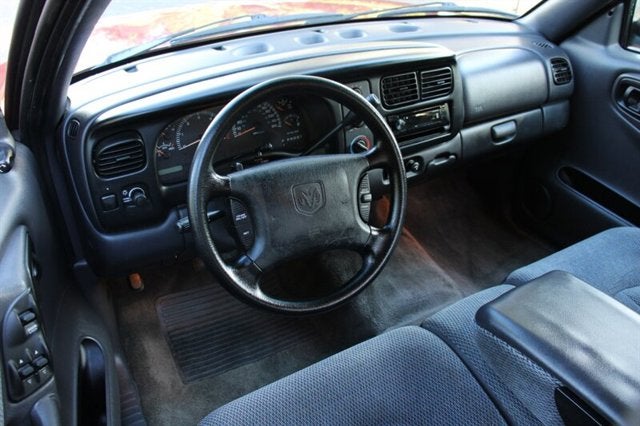

• Black sport steering wheel
• Cigar lighter

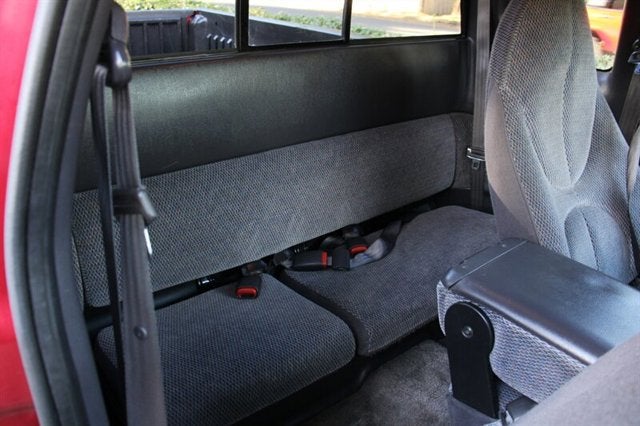

• Cloth 40/20/40 bench seat-inc: 60/40 rear bench flip-type seats, center armrest
• Day/night rearview mirror
• Electronic AM/FM stereo radio w/cassette
• Floor carpeting
• Hood release in cab
• Instrument panel w/side window demisters
• Side window demisters

• 117-amp alternator
• 1450# payload pkg-inc: 5240 GVWR (3000 front/3000 rear), springs (3000 front/3000 rear), axles (3000 front/3850 rear)

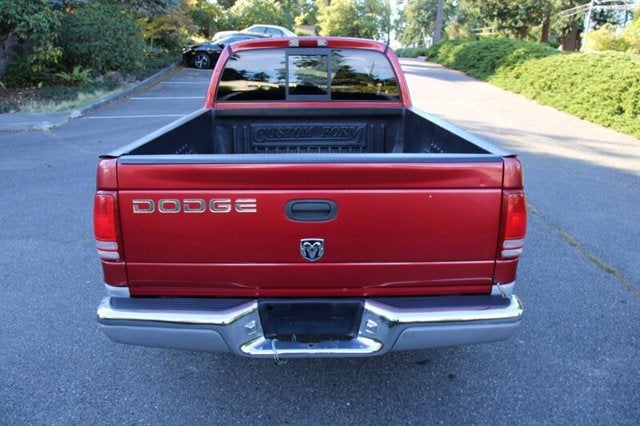

• 6.5' pickup box-inc: double wall construction, 2-tier loading, easy-off tailgate
• 600-amp maintenance-free battery
• 9.0" diameter hydraulic clutch
• Conventional spare tire & wheel w/underslung spare tire carrier
• Front stabilizer bar
• HD front/rear shock absorbers
• High strength 35,000 PSI carbon steel frame
• Independent front suspension
• Pwr front disc/rear drum brakes
• Pwr rack & pinion steering
• Rear wheel drive

• 3-point outboard seating position unibelts w/front height adjusters, center lap belts
• Driver & front passenger air bag
• Single electric horn

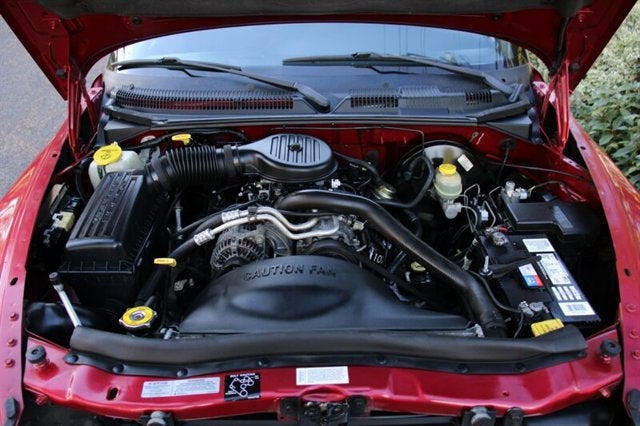

3.9L (239) MPI V6 "MAGNUM" ENGINE

• (STD)

• Rear Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Power Steering
• Front Disc/Rear Drum Brakes
• Privacy Glass
• Intermittent Wipers
• Cloth Seats
• Split Bench Seat
• Rear Bench Seat
• AM/FM Stereo
• Cassette
• Driver Air Bag
• Passenger Air Bag

• Mileage
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 117
• Maximum Alternator Watts: 1404
• Cooling System
• Total Cooling System Capacity (qts): 14.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3000
• Gross Axle Wt Rating - Rear (lbs): 3000
• Curb Weight - Front (lbs): 2187
• Curb Weight - Rear (lbs): 1575
• Gross Vehicle Weight Rating Cap (lbs): 5240
• Gross Combined Wt Rating (lbs): 7500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 700
• Suspension
• Suspension Type - Front: Independent Coil
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): 3000
• Spring Capacity - Rear (lbs): 3000
• Axle Type - Rear: Semi-Floating Hypoid
• Axle Capacity - Front (lbs): 3000
• Axle Capacity - Rear (lbs): 3850
• Axle Ratio (:1) - Rear: 3.21
• Shock Absorber Diameter - Front (mm): 30.2
• Shock Absorber Diameter - Rear (mm): 30.2
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Power
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.3 x 0.9
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 9 x 2.5
• Tires
• Front Tire Order Code: TME
• Rear Tire Order Code: TME
• Spare Tire Order Code: TME
• Front Tire Size: P215/75R15
• Rear Tire Size: P215/75R15
• Spare Tire Size: P215/75R15
• Front Tire Capacity (lbs): 1583
• Rear Tire Capacity (lbs): 1583
• Spare Tire Capacity (lbs): 1583
• Revolutions/Mile @ 45 mph - Front: 755
• Revolutions/Mile @ 45 mph - Rear: 755
• Revolutions/Mile @ 45 mph - Spare: 755
• Wheels
• Front Wheel Size (in): 15 x 7.0
• Rear Wheel Size (in): 15 x 7.0
• Spare Wheel Size (in): 15 x 6.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power Rack & Pinion
• Steering Ratio (:1), On Center: 14.8
• Turning Diameter - Curb to Curb (ft): 41.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.0
• Fuel Tank Location: Inboard LH
• Exterior Dimensions
• Wheelbase (in): 130.9
• Length, Overall w/o rear bumper (in): 214.8
• Width, Max w/o mirrors (in): 71.5
• Height, Overall (in): 65.6
• Overhang, Front (in): 34.4
• Overhang, Rear w/o bumper (in): 49.7
• Front Bumper to Back of Cab (in): 122.1
• Cab to Axle (in): 38.0
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 28.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.1
• Ground Clearance, Rear (in): 8.4

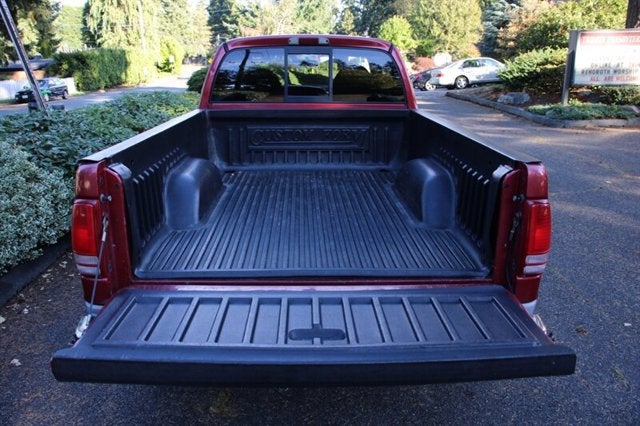

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 77.9
• Cargo Box Width @ Top, Rear (in): 57.8
• Cargo Box Width @ Floor (in): 59.3
• Cargo Box Width @ Wheelhousings (in): 44.7
• Cargo Box (Area) Height (in): 17.6
• Tailgate Width (in): 57.8
• Cargo Volume (ft³): 47.1
• Ext'd Cab Cargo Volume (ft³): 25.2
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.0
• Front Leg Room (in): 41.9
• Front Shoulder Room (in): 58.9
• Front Hip Room (in): 58.0
• Second Head Room (in): 38.0
• Second Leg Room (in): 22.1
• Second Shoulder Room (in): 54.8
• Second Hip Room (in): 53.1
• Summary

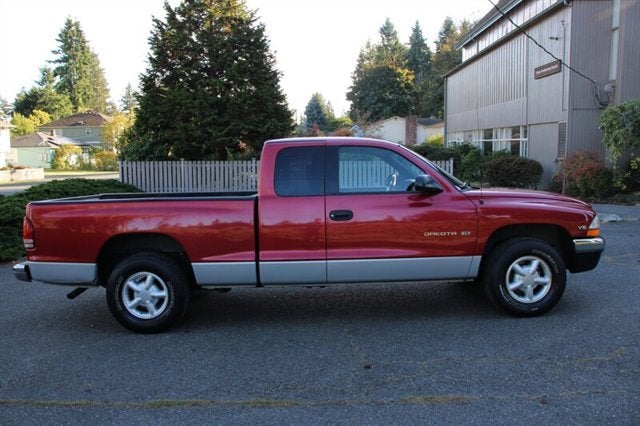

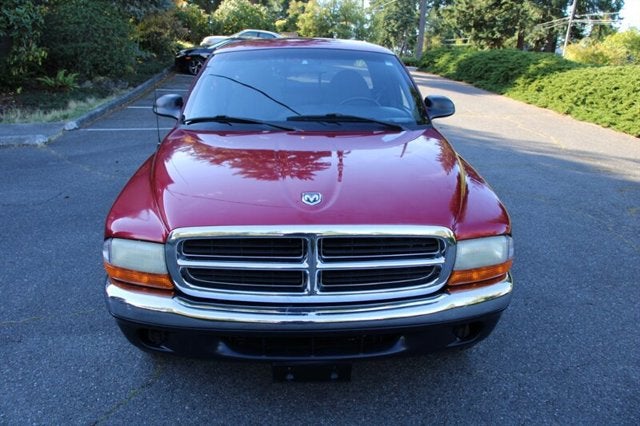

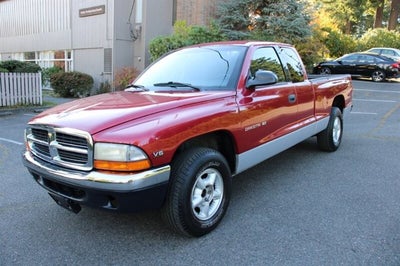

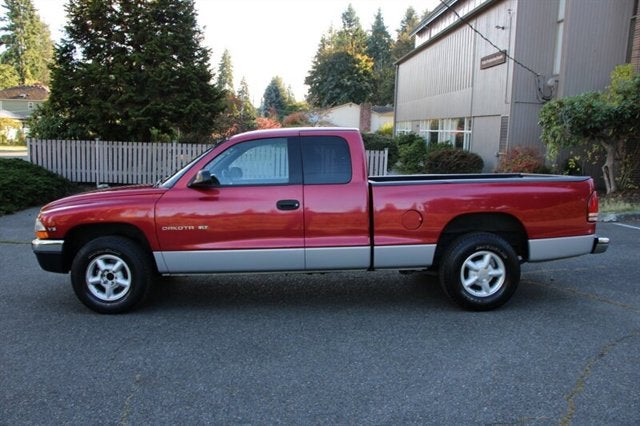

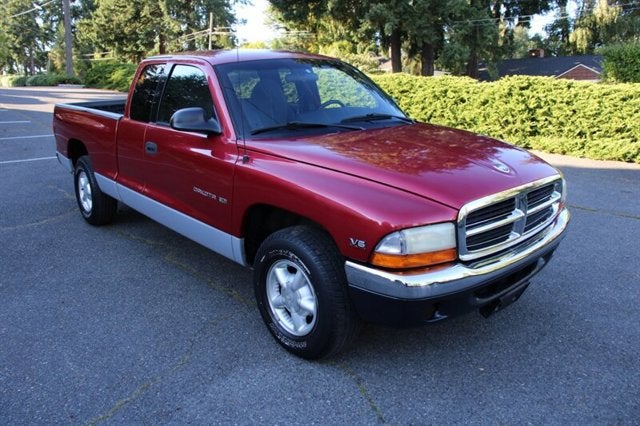

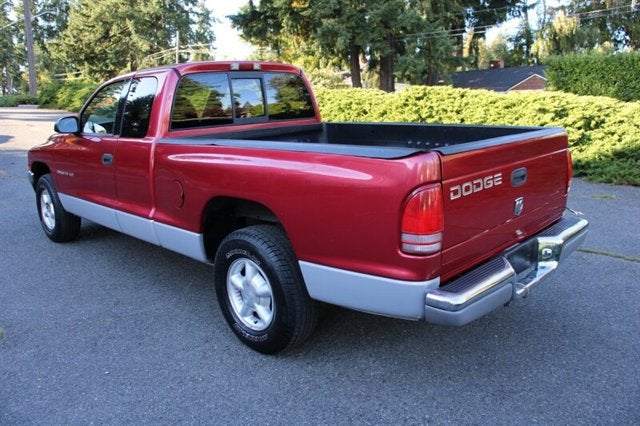

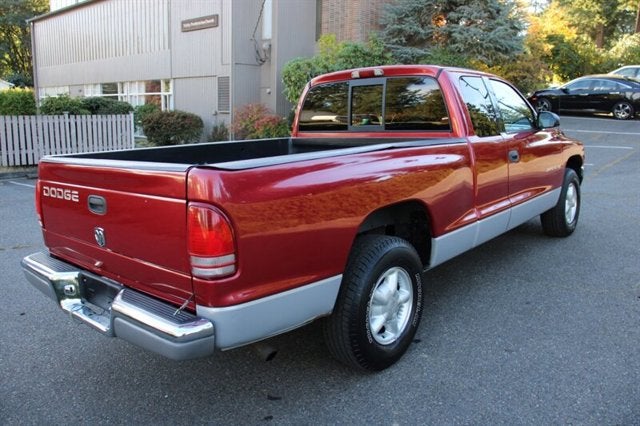

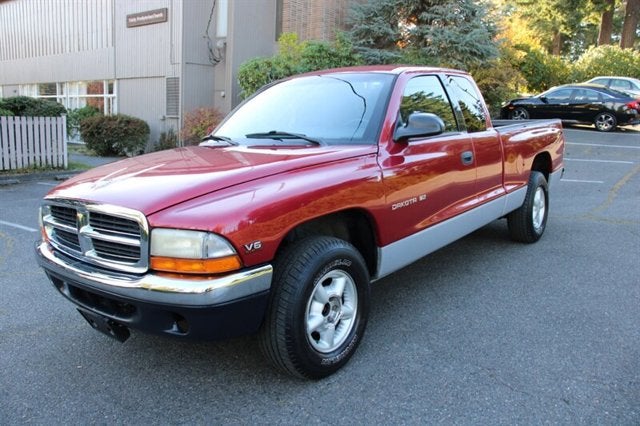

• Vehicle Name: Dodge Dakota
• Body Style: Club Cab 6.5'
• Body Code: 131" WB
